  • Resistance
    1k；2k；3k；5k；10k；15k；20k；50k；100k
  • B value
    3435k；3950k；3380k；3470k；3977K；Customized
  • Tolerance
    ±1%；±2%；±3%；±5%
  • Temperature Range
    -50~250℃
  • Head Material
    Epoxy Resin
  • Cable Material
    CP；Iron；Silicone；Customized
  • Cable Length
    50mm；35mm；Customized
Name *

Email/Tel *

Inquiry *

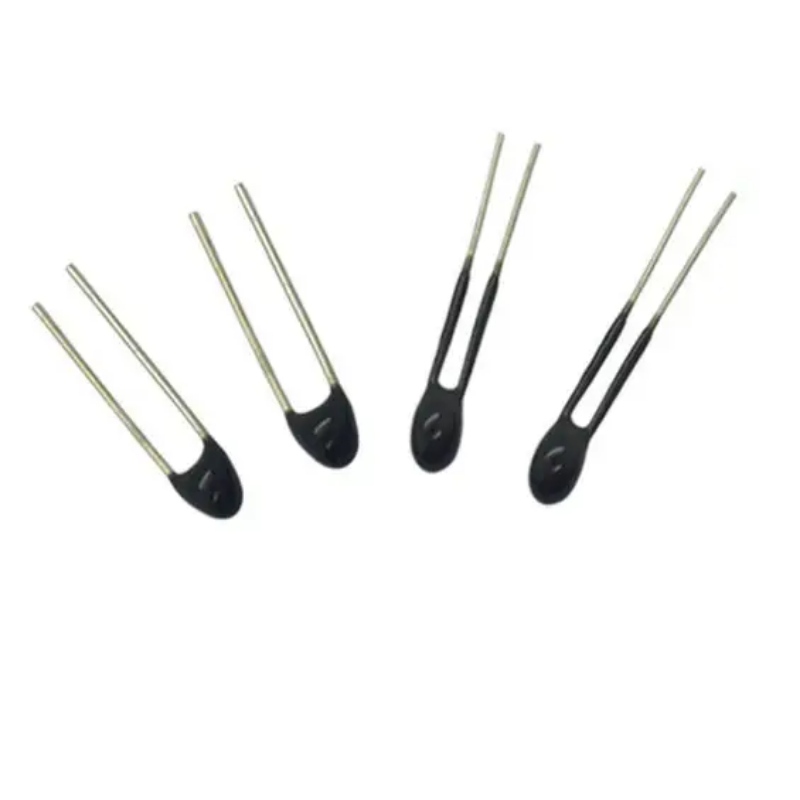

Model Number MF52A
Appearance Description Epoxy NTC thermisor with CP Wire
Features

1. Small size, Fast response, High sensitivity.

2. High accuracy,  tolerance   ±1%

3. Excellent thermal cycle endurance.

4. High stability.

5. Operating ranges -40℃ ~ +150℃.

6. Wire: CU/CP/Ni-Fe   Kinked/Stright/Bend
Application Onboard sensing (PCBA) ：Temperature Sensing, Temperature Control, Temperature measurement,Temperature Detector
Electrical Characteristics

Thermal dissipation Coefficient ≥ 2mW/℃ (in still air)

Thermal time constant ≤7s (in still air)

Insulation resistance ≥100 MΩ (100V/DC 1min)

Maximum rated power 50 mW

Resistance@25℃:  Optional

B value(B25/50  B25/85):  Optional
Place of Origin Guangdong, China
Warranty period 5 Years



home  ꄲ  NTC Thermistors  ꄲ  MF52A epoxy NTC thermistor welded with CP Wire

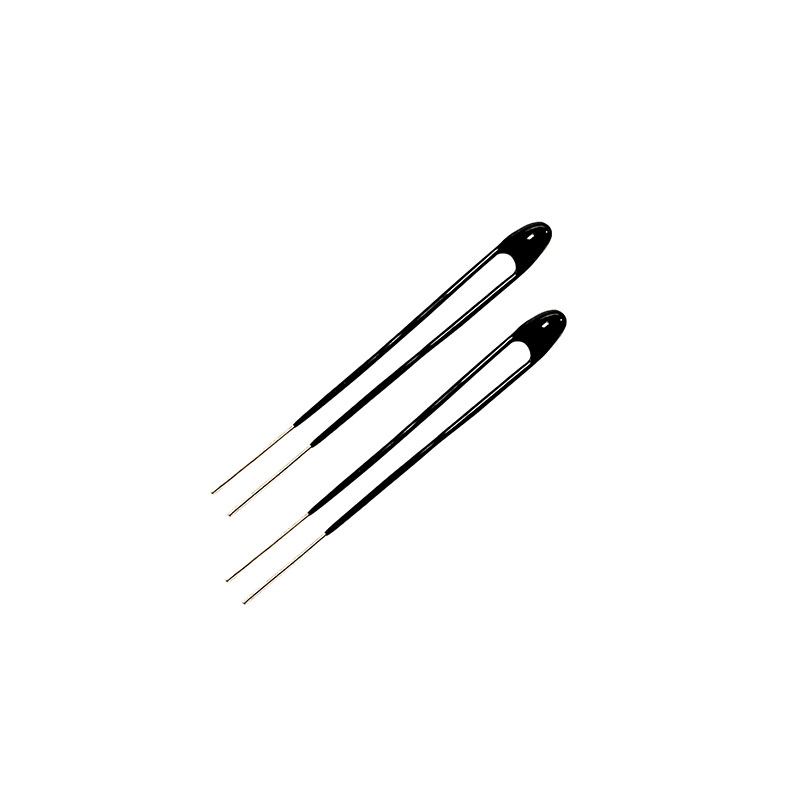

MF52A epoxy NTC thermistor welded with CP Wire
